Laboratory Clean Bench

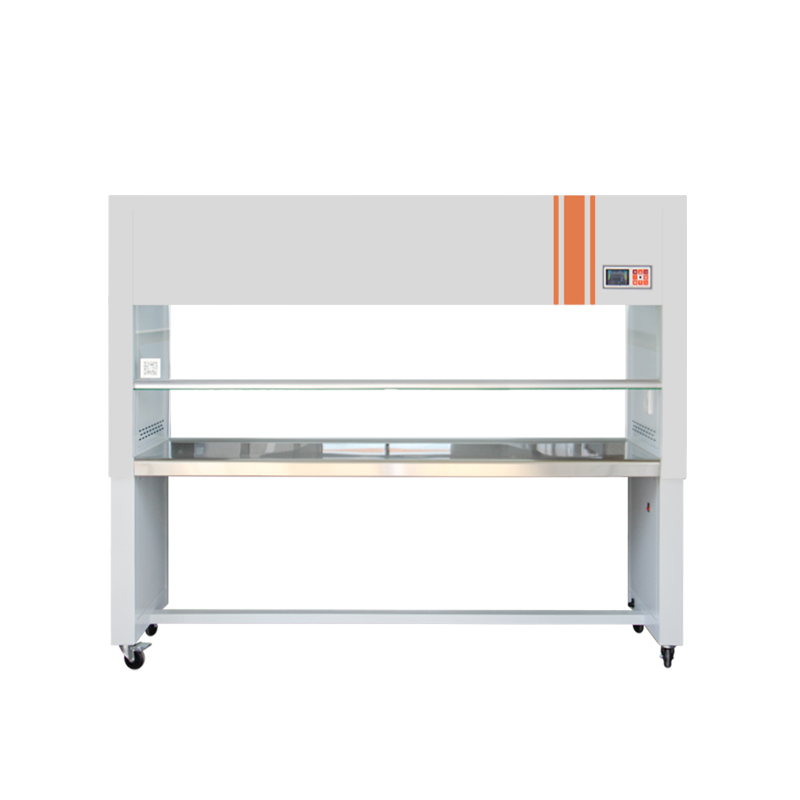

The LCB-3FDS is a professional 1.8m large-scale vertical laminar flow cabinet optimized for three-person, single-sided operation. It provides a certified Grade 100 sterile environment featuring a high-durability SUS304 stainless steel workbench and efficient HEPA filtration.
Product Details
The LCB-3FDS is a professional 1.8m large-scale vertical laminar flow cabinet optimized for three-person, single-sided operation. It provides a certified Grade 100 sterile environment featuring a high-durability SUS304 stainless steel workbench and efficient HEPA filtration. Its space-saving design and intuitive LCD control make it the ultimate choice for high-volume sterile laboratory and industrial applications.
Features
Triple-Operator Workflow: Optimized for three people to work side-by-side on a single side, perfect for high-throughput laboratory tasks where wall-aligned placement is required to save floor space.
1.8-Meter Extra-Wide Sterile Zone: Offers an expansive 1800mm wide working area maintained at stable Grade 100 (Federal 209E) cleanliness, ideal for large-scale experiments or batch processing.
Advanced Airflow Shielding: The vertical quasi-closed countertop creates a powerful downward air curtain, effectively isolating the workspace from external contaminants and maintaining a pristine sterile environment.
Intelligent LCD Control: Equipped with a professional LCD control interface for precise
Technical parameters
Air supply | Vertical air supply |
NO.Index / Model | SW-CJ-3FDS |
Cleaning level | Grade 100 (209E U.S.Federal) |
Number of bacteria | ≤0.5 / petri dish.hour (Diameter 90mm petri dish) |
The average wind speed | 0.25-0.45m/s |
Noise | ≤62dB |
Power supply | AC, 220V/50Hz |
Half ventilation peak value | ≤5μm (X、Y、Z direction) |
Illumination | ≥300LX |
Max.power consumption | 700W |
Dimension of working area(W*D*H)(mm) | 1800*650*580 |
Overall dimension(W*D*H)(mm) | 1960*690*1600 |
Specification and number of fluorescent lamp or UV lamp of ultravioet lights | 20W / 36W |
Note | Non-standard size can also be customized |
