Laboratory Clean Bench

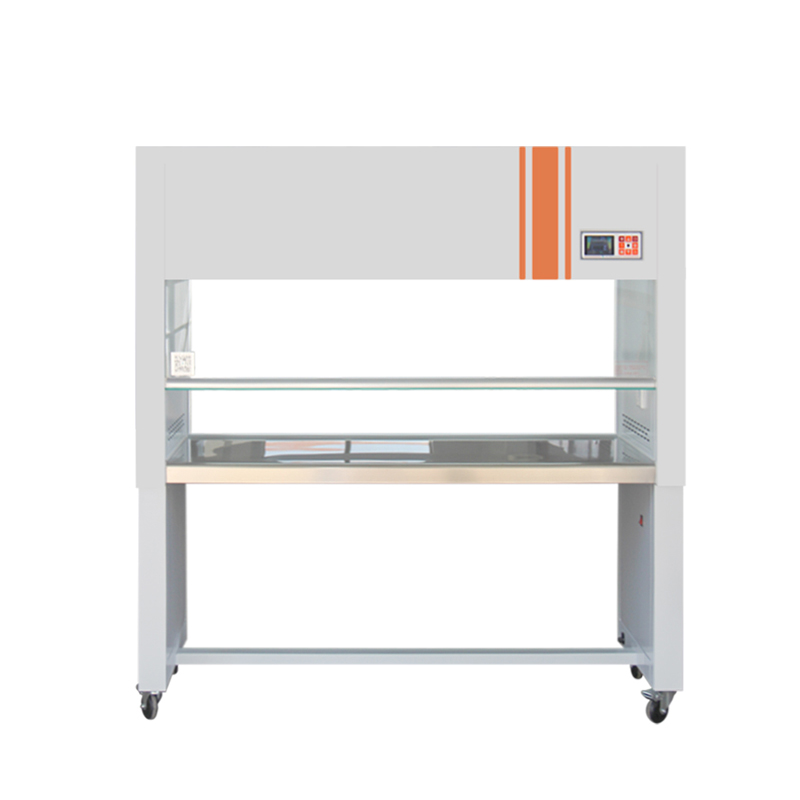

The LCB-2FDS is a high-performance vertical laminar flow cabinet optimized for single-side, two-person operation. It provides an ISO 5 (Class 100) sterile environment, making it ideal for medical health, chemical experiments, and electronics assembly.
Product Details
The LCB-2FDS is a high-performance vertical laminar flow cabinet optimized for single-side, two-person operation. It provides an ISO 5 (Class 100) sterile environment, making it ideal for medical health, chemical experiments, and electronics assembly. Its slim profile (690mm depth) and digital control system make it a versatile and reliable choice for modern controlled-environment laboratories.
Features
Space-Efficient Design: Engineered for a single-side operation, allowing two people to work side-by-side, perfect for wall-aligned laboratory layouts to maximize floor space.
Sterile Air Curtain: The vertical quasi-closed countertop generates a continuous downward air curtain, effectively shielding the 1370*650mm workspace from external contaminants.
Robust Sterilization: Features an integrated UV lamp with a precise timing function, interlocked with the lighting system for guaranteed operator safety and effective decontamination.
Precision Engineering: Achieves a vibration half peak of ≤0.5μm and ultra-low noise levels (≤62dB), ensuring a stable and quiet environment for delicate microscopic work.
Technical parameters
Air supply | Vertical air supply |
NO.Index / Model | SW-CJ-2FDS |
Cleaning level | Grade 100 (209E U.S.Federal) |
Number of bacteria | ≤0.5 / petri dish.hour (Diameter 90mm petri dish) |
The average wind speed | 0.25-0.45m/s |
Noise | ≤62dB |
Power supply | AC, 220V/50Hz |
Half ventilation peak value | ≤5μm (X、Y、Z direction) |
Illumination | ≥300LX |
Max.power consumption | 640W |
Dimension of working area(W*D*H)(mm) | 1370*650*580 |
Overall dimension(W*D*H)(mm) | 1530*690*1600 |
Specification and number of fluorescent lamp or UV lamp of ultravioet lights | 20W / 36W |
Note | Non-standard size can also be customized |
