Instrument

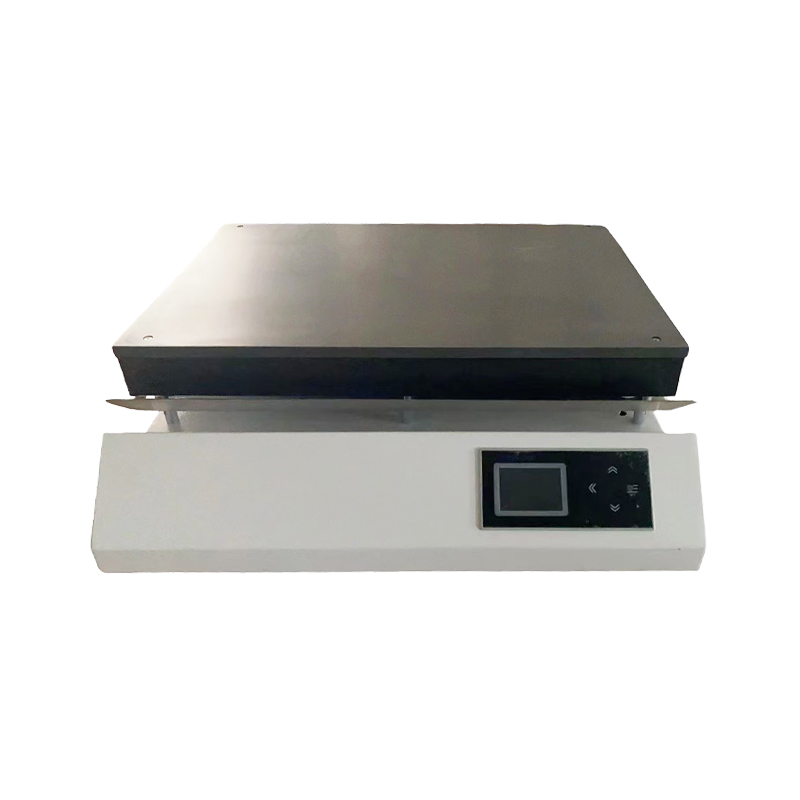

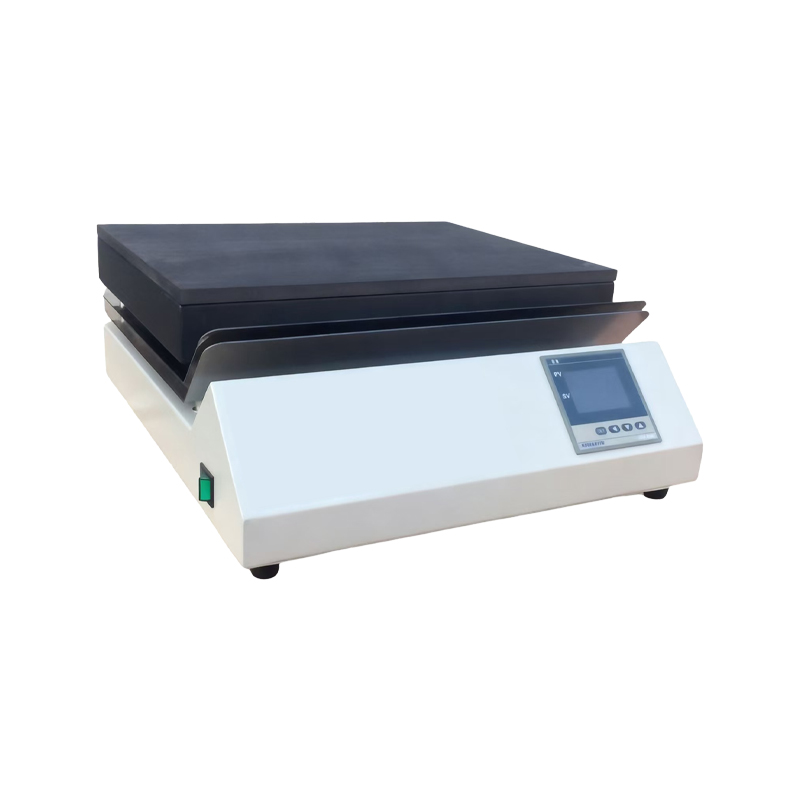

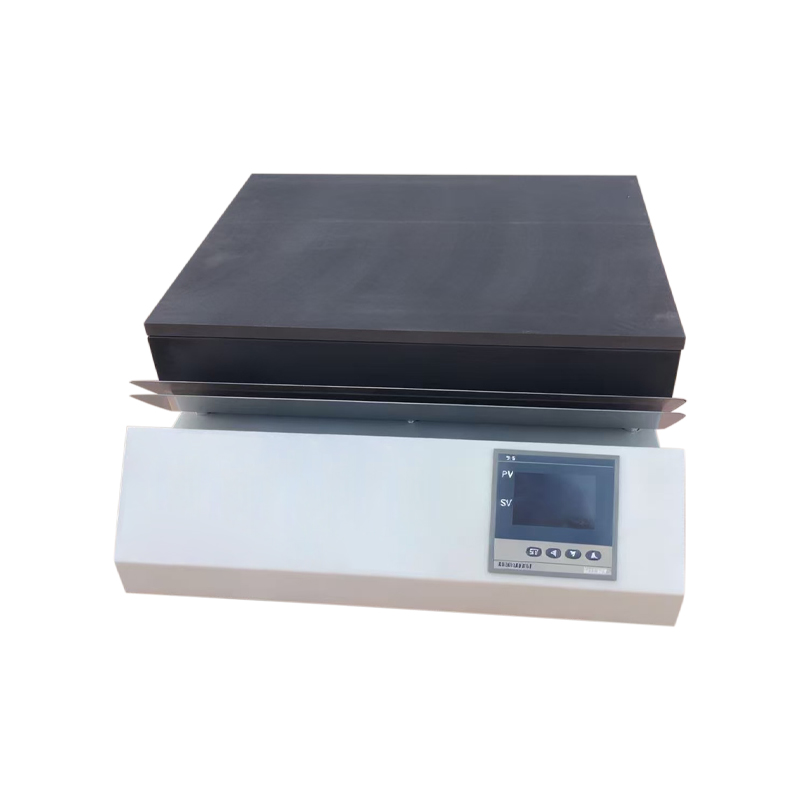

The Labant LGP Series Graphite Electric Heating Plate is a high-performance laboratory instrument designed for a wide range of heating applications, including sample drying, digestion, evaporation, and temperature-controlled reactions.

It utilizes high-purity isostatic pressed graphite as the core heating component, ensuring uniform temperature distribution, precise temperature control, corrosion resistance, and energy efficiency — ideal for use in biological, chemical, environmental, and food testing laboratories.

Key Features

Advanced Heating Technology

Graphite Heating Element: Made of high-purity isostatic pressed graphite with excellent thermal conductivity (≥150 W/(m·K)), ensuring even heat distribution across the entire surface.

Uniform Temperature Field: Temperature variation between sample positions is within ±1.5°C, preventing localized overheating or cold zones that can affect results.

High-Precision Temperature Control

PID Intelligent Control: Equipped with an auto-tuning PID system that self-calibrates to maintain fast, stable, and accurate temperature control.

Adjustable Heating Rate: Steplessly adjustable from 0.1–10°C/min (model-dependent), adaptable to different experimental protocols.

Temperature Accuracy: ±1°C control precision with real-time temperature fluctuation ≤ ±1.0°C.

Intelligent Programmable Function

Digital LCD Interface: A 2.4-inch display provides real-time readings of set temperature, actual temperature, heating time, and program status.

Multi-Segment Programming: Supports up to 10 heating segments — each configurable with target temperature, heating rate, and hold time.

Auto Shutdown: Optional automatic power-off at the end of a program, ensuring safe and unattended operation.

Energy Efficiency & Productivity

Optimized Insulation Design: Dual-layer insulation (air layer + aluminum silicate layer) reduces heat loss by ≥30% compared with single-layer designs, improving energy efficiency.

Large Heating Area: Available in multiple sizes (from 300×200 mm to 600×400 mm), suitable for heating 5–20 samples simultaneously depending on vessel size.

Superior Corrosion Resistance

PTFE Surface Coating: Provides excellent resistance to strong acids (e.g., 98% H₂SO₄), strong alkalis (e.g., 50% NaOH), and common organic solvents (e.g., ethanol, acetone).

Optional Anti-Corrosion Casing: ABS anti-corrosive shell available for harsh environments, protecting internal circuits from chemical vapors and corrosion.

Ergonomic Split Design (Optional)

Separated Control Module: Heating plate and controller are connected by a 2-meter cable, allowing flexible placement and safer operation.

Safe Operation in Fume Hood: Controller can be positioned outside the hood to prevent exposure to corrosive gases while maintaining convenient control access.

Applications

Sample digestion and evaporation

Compound drying and thermal decomposition

Acidic or alkaline solution heating

Temperature-controlled chemical reactions

Environmental sample pre-treatment

Technical parameters:
