Pipette

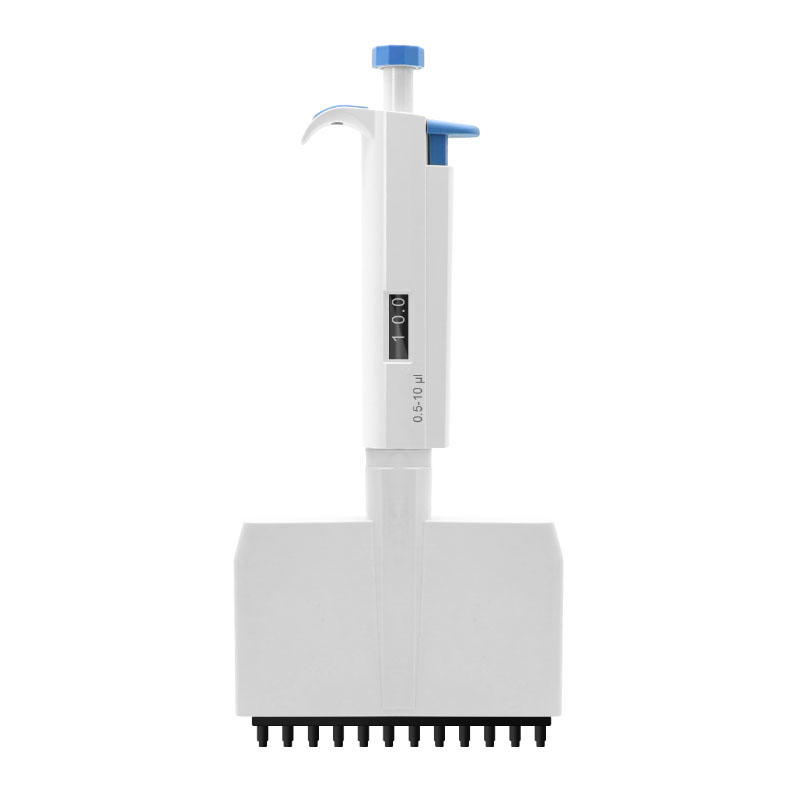

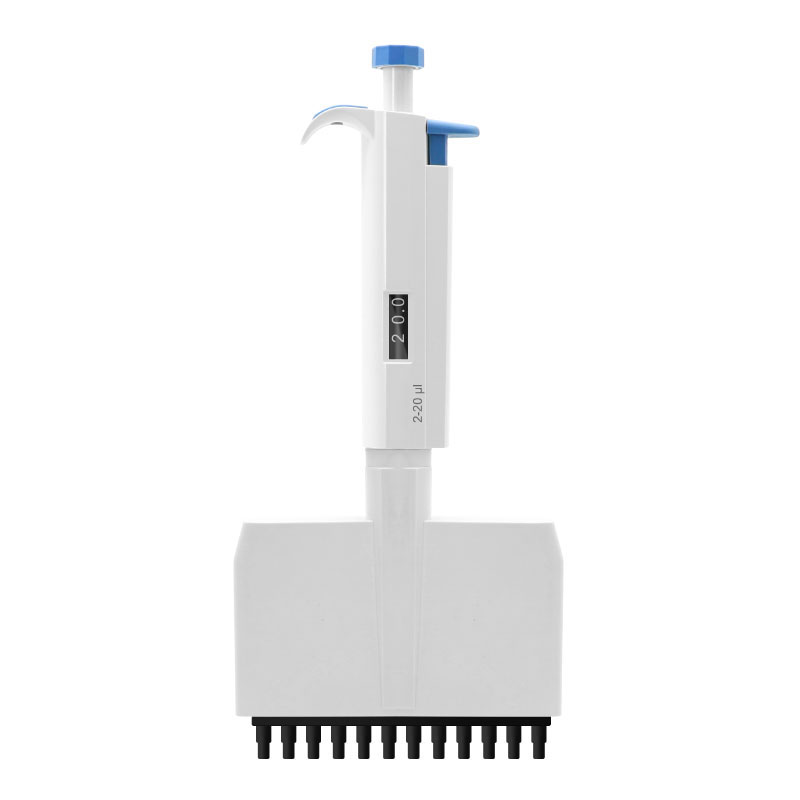

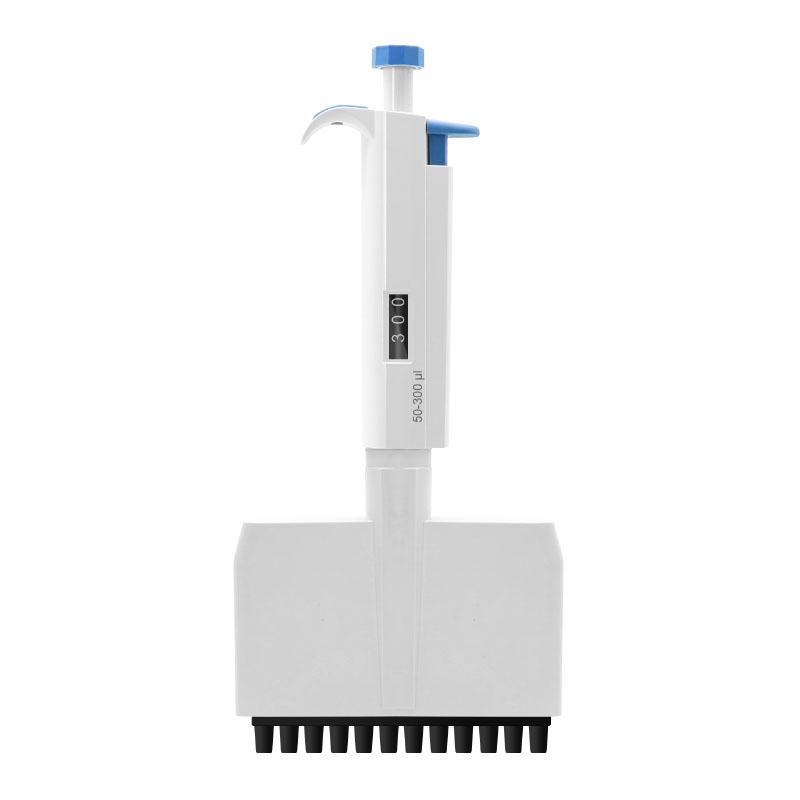

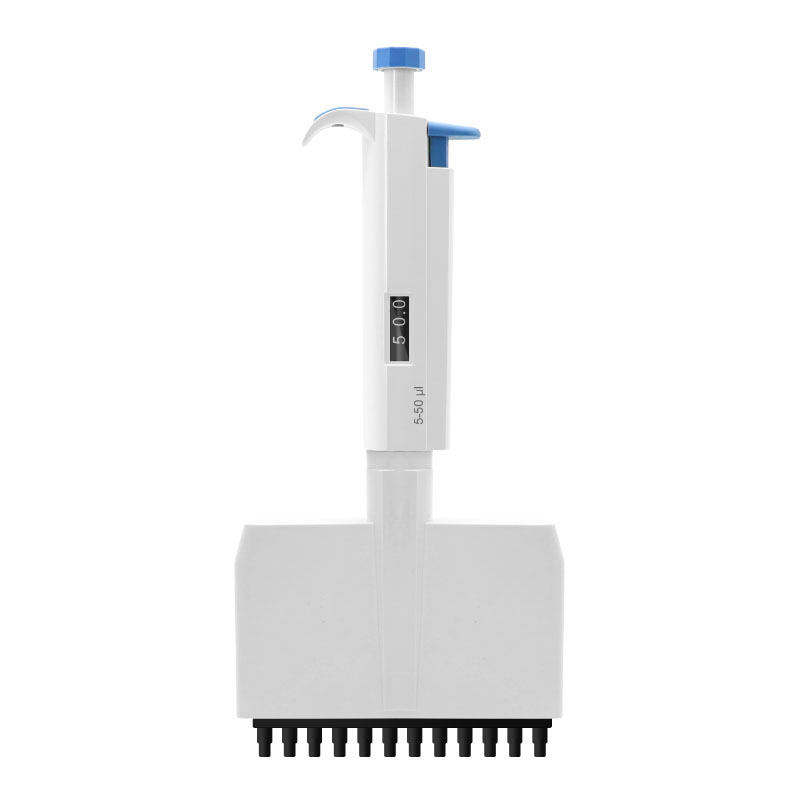

This 12-channel pipette is specifically designed for high-throughput liquid handling, delivering enhanced efficiency and precision in multi-sample laboratory workflows. Compared to standard multi-channel pipettes, the 12-channel configuration enables faster processing of microplate-based applications, making it ideal for ELISA, PCR, and other high-density assays.
Product Details
This 12-channel pipette is specifically designed for high-throughput liquid handling, delivering enhanced efficiency and precision in multi-sample laboratory workflows. Compared to standard multi-channel pipettes, the 12-channel configuration enables faster processing of microplate-based applications, making it ideal for ELISA, PCR, and other high-density assays.
The pipette is available in both fully autoclavable and partially autoclavable options, allowing users to select the appropriate sterilization method based on laboratory requirements. Equipped with a simultaneous tip ejection system, it enables quick and effortless removal of all tips at once, improving operational efficiency.
The 360° rotatable pipetting head provides flexibility for various working positions, while the independent piston system in each channel ensures consistent and reliable liquid handling performance. With a clear volume display window and ergonomic design, this pipette offers ease of use, accuracy, and durability for routine laboratory applications.
Key Features
12-Channel High-Throughput Design
Allows simultaneous handling of 12 samples, significantly increasing productivity in microplate applications.
Simultaneous Tip Ejection System
Enables one-step removal of all tips, saving time and reducing hand fatigue.
360° Rotatable Pipetting Head
Provides flexible operation from multiple angles, improving user comfort and efficiency.
Independent Piston System
Each channel operates with an individual piston, ensuring high accuracy and reproducibility.
Autoclavable Options Available
Offered in full or partial autoclavable versions to meet different sterilization needs.
User-Friendly Structure
Ergonomic design combined with a clear display window for easy volume setting and operation.
Easy Maintenance & Modular Design
Simple disassembly structure allows convenient cleaning, maintenance, and long-term use.
Technical Parameters
Volume Range | Increment | Test Points | Accuracy | Precision | Packaging | Gross Weight (KG) | Volume (m³) | ||
ul | % | ul | % | ul | |||||
0.5-10ul | 0.1ul | 10 | ±1.5% | 0.15 | ±1.5% | 0.15 | 500 pcs/carton | 16 | 0.56*0.36'0.28 |
5 | ±2.5% | 0.13 | ±2.5% | 0.13 | |||||
1 | ±4% | 0.04 | ±4% | 0.04 | |||||
2-20ul | 0.5ul | 20 | ±0.9% | 0.18 | ±0.4% | 0.08 | 500 pcs/carton | 16 | 0.56*0.36'0.28 |
10 | ±1.2% | 0.12 | ±1% | 0.10 | |||||
2 | ±3% | 0.06 | ±2% | 0.04 | |||||
5-50ul | 0.5ul | 50 | ±1% | 0.50 | ±0.5% | 0.25 | 500 pcs/carton | 17 | 0.56*0.36*0.28 |
25 | ±1.5% | 0.38 | ±1% | 0.25 | |||||
1 | ±3% | 0.03 | ±2% | 0.02 | |||||
10-100ul | lul | 100 | ±0.8% | 0.80 | ±0.15% | 0.15 | 500 pcs/carton | 17 | 0.56*0.36*0.28 |
50 | ±1% | 0.50 | ±0.4% | 0.20 | |||||
10 | ±3% | 0.30 | ±1.5% | 0.15 | |||||
20-200ul | lul | 200 | ±0.6% | 1.20 | ±0.15% | 0.30 | 500 pcs/carton | 17 | 0.56*0.36*0.28 |
100 | ±0.8% | 0.80 | ±0.3% | 0.30 | |||||
20 | ±3% | 0.60 | ±1% | 0.20 | |||||
30-300ul | 5ul | 300 | ±0.7% | 2.10 | ±0.25% | 0.75 | 500 pcs/carton | 18 | 0.56*0.36*0.28 |
150 | ±1% | 1.50 | ±0.5% | 0.75 | |||||
30 | ±1.5% | 0.45 | ±0.8% | 0.24 | |||||
50-300ul | 5ul | 300 | ±0.7% | 2.10 | ±0.25% | 0.75 | 500 pcs/carton | 18 | 0.56*0.36*0.28 |
150 | ±1% | 1.50 | ±0.5% | 0.75 | |||||
50 | ±1.5% | 0.75 | ±0.8% | 0.40 | |||||
